Ruijie / Reyee

This article describes installation and configuration steps for Ruijie / Reyee. Gateway tested EG209GS, ReyeeOS 1.216.1504.

Radius support for login/logout was added for EG305GH-E and EG310GH-E models.
Currently, it is not possible to control the bandwidth quota limit.

Minimum supported version is ReyeeOS 1.216.1504

Supported gateways are:

RG-EG105G-V2
RG-EG105G-P-V2
RG-EG210G-P
RG-EG210G-P-E
RG-EG209GS
RG-EG305GH-P-E
RG-EG310GH-E
RG-EG310GH-P-E
EG105GW(T)
EG105GW(X)

If these gateways are used, any Ruijie / Reyee AP model will be able to use captive portal functionality.

Connecting

Login to your Ruijie cloud account.

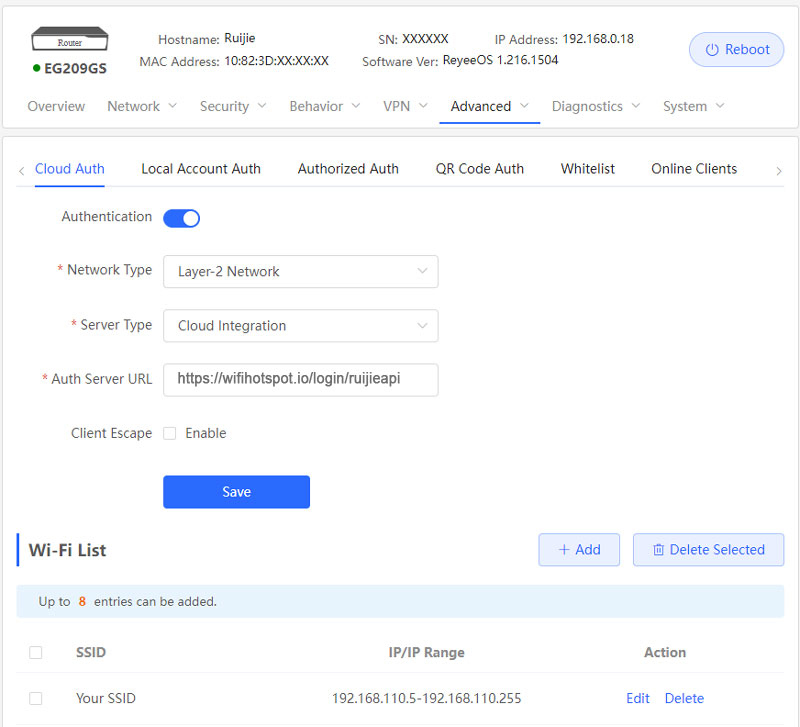

Go to Advanced / Cloud Auth section and cofigure following:

Authentication: enabled
Network Type: Layer-2 Network
Server Type: Cloud Integration
Auth Server URL: https://wifihotspot.io
Client Escape: disabled

Save changes.

Configure your IP range like 192.168.110.5-192.168.110.255

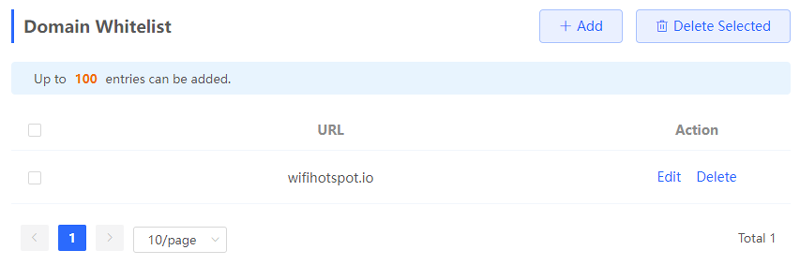

Whitelist
all required portal URLs.

Beside the URL on the image below, please add the following:

wifihotspot.io
cdn.wifihotspot.io
starthotspot.com
cdnhotspot.azureedge.net
cdn.starthotspot.com
t-msedge.net
static.cloudflareinsights.com
13.92.228.228
13.90.247.200
40.117.190.72
40.121.151.4

Logout online clients by deleting from the list.

Additional Setup Instructions

If you are not sure how to configure your device, please open the Ruijie cloud.

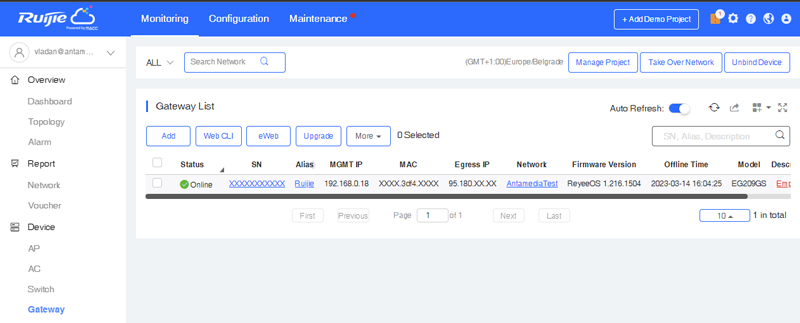

Find the Gateway page under Monitoring – Device.
Click the serial number SN in the Gateway List.

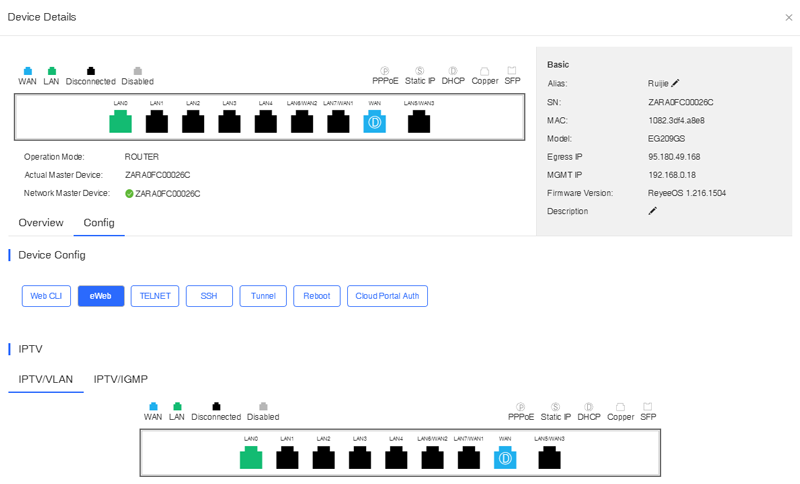

In Device Config section, click eWeb button to open the popup and then click to connect with URL to your device.

When the page opens, you will see your devices and then proceed with the setup from the beginning of this page.

Troubleshooting

  • Ruijie / Reyee devices are able to control and report time usage, session start and end time, hotspot name, location and device used. User sessions are saved into the session log and user status is updated after login and logout.
  • After login, Page redirect option works as expected with a predefined URL on the Splash page.

If you need help with configuration, please go to starthotspot.com and contact our tech support. We’ll be glad to help you.
