Ruckus Virtual SmartZone

This article describes the installation and configuration steps for Ruckus Virtual SmartZone controller.

Our test was performed with controller version 3.6.2.0.222, Control Plane Software version 3.6.2.0.63, and AP Firmware Version 3.6.2.0.695.

The Ruckus Virtual SmartZone (vSZ) is an NFV-based and cloud-ready virtualized WLAN controller for service providers and enterprises ready to elevate their WLAN deployment to the next level of flexibility.

Configuring parameters

Go to Service & Profiles / Hotspots & Portals menu.

Select the Hotspot (WISPr) tab, and then select the zone for which you want to create the portal.
Click Create.

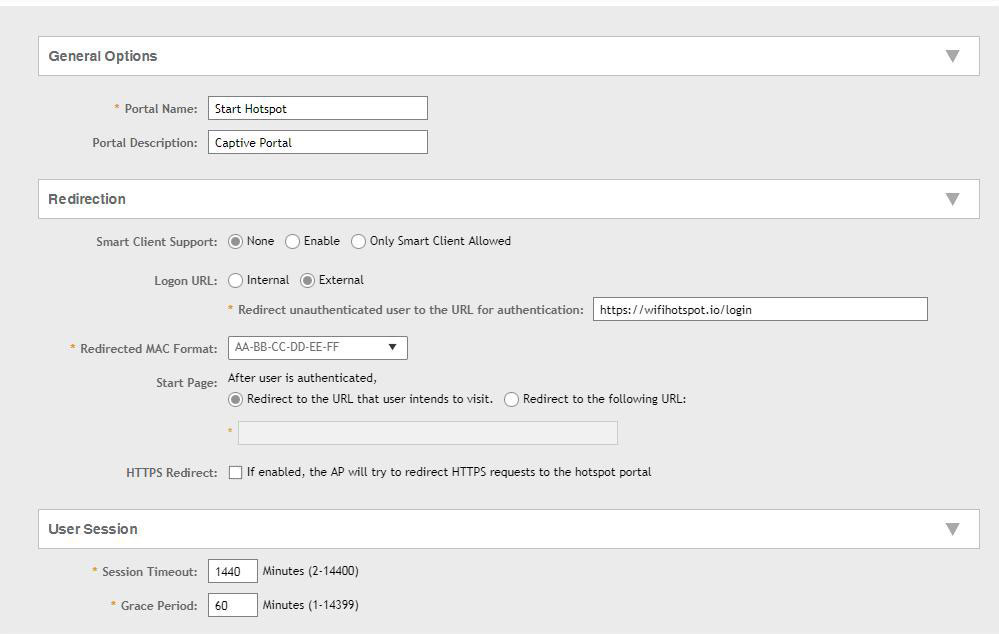

The Create Hotspot (WISPr) Portal page appears.

General Options:
Type Portal name and optionally Portal Description.

Redirection:

Redirect unauthorized user to the URL for authentication (Smart Zone):
https://wifihotspot.io/login/ruckus

Redirect unauthorized user to the URL for authentication (Zone Director):
https://wifihotspot.io/login/ruckuszd

Smart Client Support: select None
Logon URL: select External
Redirected MAC Format: select XX-XX-XX-XX-XX-XX
Start Page: select Redirect to the URL that user intends to visit
HTTPS Redirect: disabled

User Session:

Session Timeout: 1440
Grace period: 60

In the Walled Garden section, enter the following domains:

wifihotspot.io
cdn.wifihotspot.io
starthotspot.com
cdn.starthotspot.com
cdnhotspot.azureedge.net
t-msedge.net
static.cloudflareinsights.com
13.92.228.228
13.90.247.200

Go to Services & Profiles / Authentication.
Select the Non-Proxy (AP Authenticator) tab, and then select the zone for which you want to create the AAA server.
Click Create.

Type Name and Description.
Select Radius.

On the Primary server section type following:
IP address: 13.92.228.228
Port: 1812
Shared Secret: (contact our office)
Confirm Secret: retype the shared secret to confirm

On the Secondary server section type following:
IP address: 13.90.247.200
Port: 1812
Shared Secret: (contact our office)
Confirm Secret: retype the shared secret to confirm

Go to Services & Profiles / Accounting.
Select the Non-Proxy tab, and then select the zone for which you want to create the AAA server.
Click Create.

On the Primary server section type following:
IP address: 13.92.228.228
Port: 1813
Shared Secret: (contact our office)
Confirm Secret: retype the shared secret to confirm

On the Secondary server section type following:
IP address: 13.90.247.200
Port: 1813
Shared Secret: (contact our office)
Confirm Secret: retype the shared secret to confirm

Click OK to save the settings.

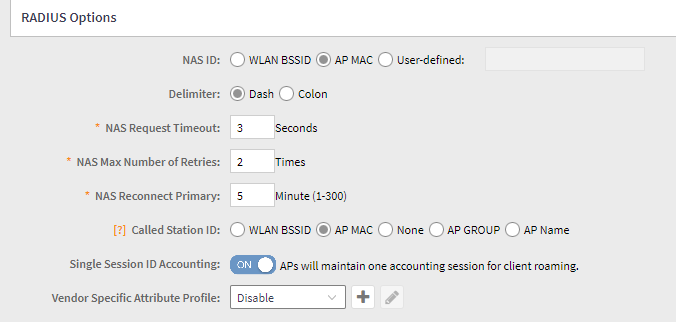

Make sure that Radius options are configured like



SSL Certificate configuration

If you want to use the SSL certificate allocated by the Ruckus Virtual Smart Zone controller you should do the following to change the CN=scg.ruckuswireless.com and the SIP:scg.ruckuswireless.com in the initial request.

In the Ruckus Virtual Smart Zone controller, you must go to Administration/Certificates, and update the certificate for Hotspot (WISPr).

The new certificate will contain the following criteria:

It needs to start with the Cluster name of the Ruckus Infrastructure.
This can be found under Network / Data and Control Plane / Cluster.

The second part of the certificate will be whatever domain name you choose from a publicly registered domain.

The new certificate needs to be a publicly registered certificate, with a CA. Most companies will have a wildcard certificate already registered with their domain.

You then need to import your public certificate into the Ruckus controller, under Administration/Certificates/Import, including the CA certificate.

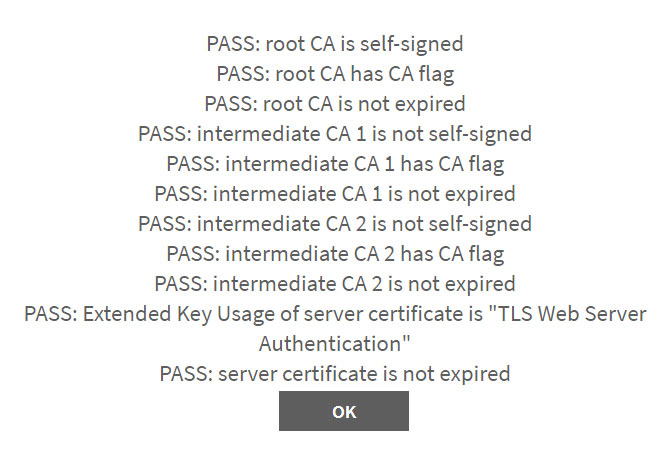

Make sure it passes all validation checks.

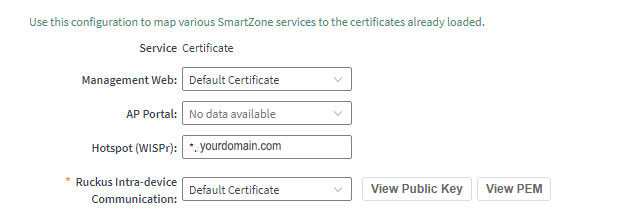

Once completed, you assign the new certificate to the Hotspot (Wispr) component under certificates.

As Hotspot (Wispr) set your domain.

Requirement

Disable MAC encryption
The Ruckus SmartZone now encrypts the MAC by default.
To disable the encryption of MAC address, go to the controller CLI and run this command:
no encrypt-mac-ip




Smart Zone

Redirect URL: https://wifihotspot.io/login/ruckus

Advanced settings will use these default values:
https://sip:9998/SubscriberPortal/hotspotlogin
https://sip:9998/SubscriberPortal/hotspotlogout
where sip is replaced with appropriate value

Zone Director

Redirect URL: https://wifihotspot.io/login/ruckuszd

Advanced settings will use these default values:
https://ruckusdn:9998/login
https://ruckusdn:9998/logout
where ruckusdn is replaced with appropriate value

Unleashed

Redirect URL: https://wifihotspot.io/login/ruckusunleashed

Advanced settings will use these default values:
https://sip:9998/login
https://sip:9998/logout
where sip is replaced with appropriate value

If http is being used, port is 9997



If you need help with configuration, please go to starthotspot.com and contact our tech support. We’ll be glad to help you.
